Loadbalancing Weblogic Managed servers using Loadmaster-KEMP



 Loadbalancing Weblogic Managed servers using Loadmaster-KEMP

One of the problems I encountered while testing weblogic cluster was not the weblogic cluster setup but getting a LB to test it. This was super easy with free LB from https://freeloadbalancer.com/


Weblogic Cluster is configured on the same server with two managed servers running on different ports. Application can be accessed with individual ports but to balance the load and access the application with single URL we need LB. Below we will see how it can be done

Oracle apex(ORDS) has been deployed on these two managed servers



Once Weblogic manged server is configured properly  and application deployment is done. We can do the necessary setup at LB



Set up load balancing with Kemp


It's super easy to setup KEMP load-balancer with a virtualbox appliance.  Just download the vm image for virtualbox from https://kemptechnologies.com/free-vlm-download and follow the installation guide that comes with the download

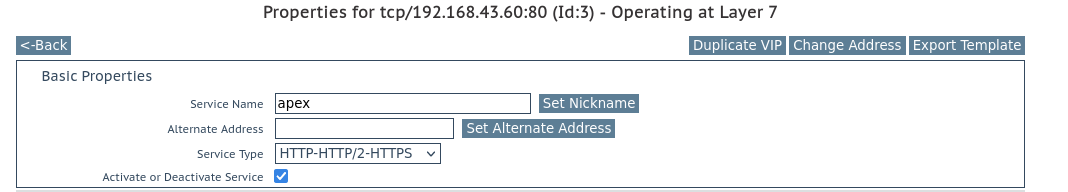

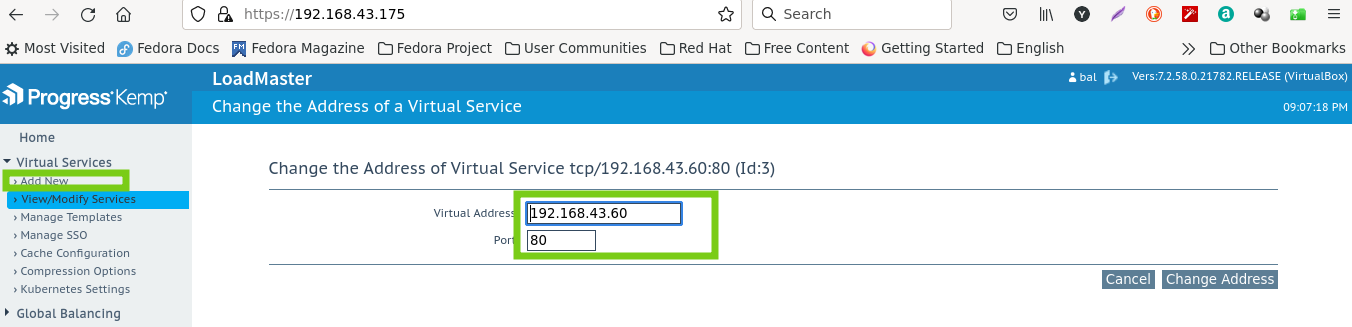

Create a Virtual IP address to access the weblogic deployed application, in this case oracle Apex







User will access the page with http://192.168.43.60:80 and LB will direct traffic either to 192.168.43.95:7010 or 192.168.43.95:7020

















Add real servers

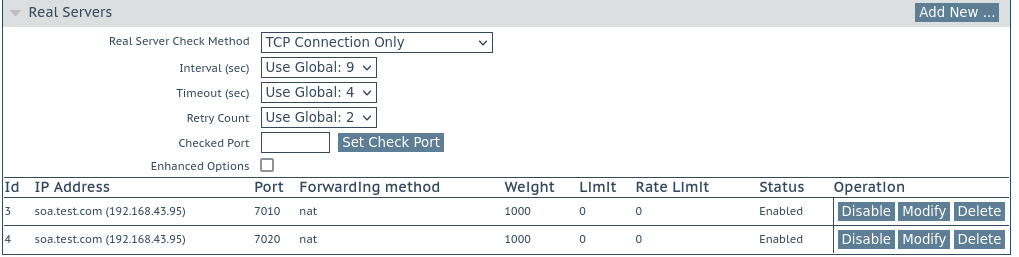

Make sure “TCP Connection Only”









Server Ip or host name can be give, if host name is given make sure it can be resolved



 add mange server listening on port 7010



 Both managed servers are running on same machine with diff ports

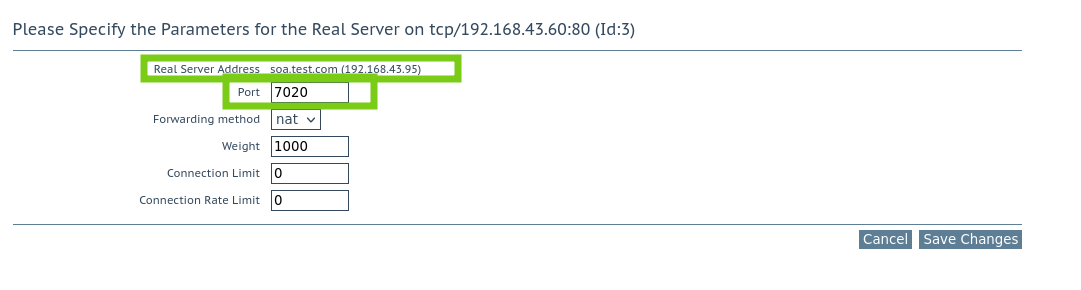

 add managed server listening on port 7020







Let's check the status of these servers

Both managed servers are down now

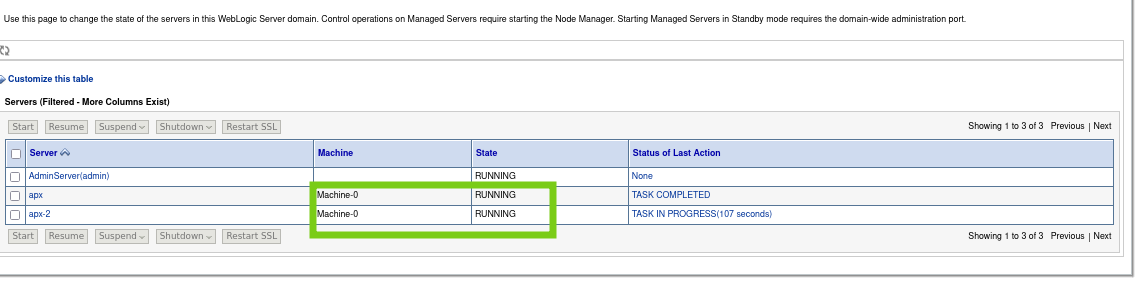

Start the Weblogic managed servers





Now the real servers status changed to “UP”






Let's access the application using virtual IP configured on KEMP Loadmaster

http://192.168.43.60/apex/apex_admin



 Test accessing the page with different scenarios like Acess the application when only managed server 1 is up, only when the managed er 2 is up, etc
